Te Parçası (Eşit ve Redüksiyonlu)

Tee-Pieces Seamless / Pulled Tee-Pieces

Malzeme

CuNi10Fe1.6Mn bakır-nikel alaşımı

Standartlar

DIN 86088

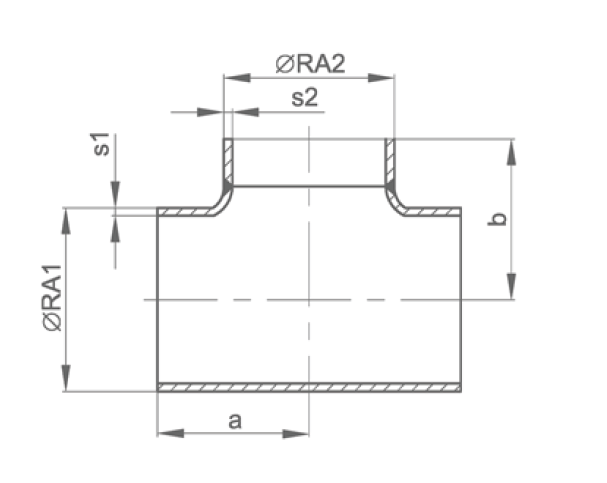

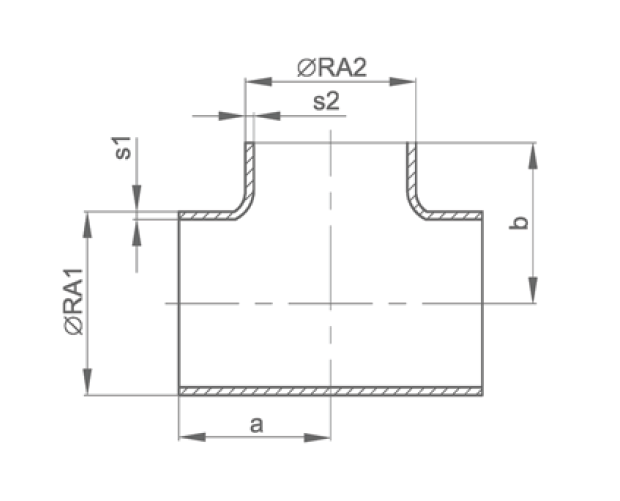

Teknik Resim

Tüm ölçüler mm, ağırlıklar kg/adet cinsindendir. Tabloyu yatayda kaydırabilirsiniz.

RA nominal RA1	x	RA nominal RA2	OD RA1	x	OD RA2	s S1	x	s S2	a mm	b mm	Gewicht kg/Stück
3/4	x	1/2	25	x	20	1,5/2,0	x	1,0/1,5	29	26	0,08/0,10
3/4	x	3/4	25	x	25	1,5/2,0	x	1,5/2,0	29	29	0,07/0,12
1	x	1/2	30	x	20	1,5/2,0	x	1,0/1,5	38	29	0,09/0,12
1	x	3/4	30	x	25	1,5/2,0	x	1,5/2,0	38	35	0,09/0,12
1	x	1	30	x	30	1,5/2,0	x	1,5/2,0	38	38	0,19/0,25
1 1/4	x	3/4	38	x	25	1,5/2,5	x	1,5/2,0	48	35	0,10/0,16
1 1/4	x	1	38	x	30	1,5/2,5	x	1,5/2,0	48	42	0,10/0,16
1 1/4	x	1 1/4	38	x	38	1,5/2,5	x	1,5/2,5	48	48	0,32/0,53
1 1/2	x	1	44,5	x	30	1,5/2,5	x	1,5/2,0	57	45	0,21/0,35
1 1/2	x	1 1/4	44,5	x	38	1,5/2,5	x	1,5/2,5	57	51	0,21/0,35
1 1/2	x	1 1/2	44,5	x	44,5	1,5/2,5	x	1,5/2,5	57	57	0,46/0,76
2	x	1	57	x	30	1,5/3,0	x	1,5/2,0	64	51	0,32/0,64
2	x	1 1/4	57	x	38	1,5/3,0	x	1,5/2,5	64	57	0,33/0,64
2	x	1 1/2	57	x	44,5	1,5/3,0	x	1,5/2,5	64	63	0,34/0,68
2	x	2	57	x	57	1,5/3,0	x	1,5/3,0	64	64	0,66/1,32
2 1/2	x	1	76	x	30	2,0/3,5	x	1,5/2,0	76	56	0,65/1,13
2 1/2	x	1 1/4	76	x	38	2,0/3,5	x	1,5/2,5	76	62	0,66/1,15
2 1/2	x	1 1/2	76	x	44,5	2,0/3,5	x	1,5/2,5	76	71	0,67/1,17
2 1/2	x	2	76	x	57	2,0/3,5	x	1,5/3,0	76	73	0,68/1,19
2 1/2	x	2 1/2	76	x	76	2,0/3,5	x	2,0/3,5	76	76	1,20/2,10
3	x	1 1/4	89	x	38	2,0/4,0	x	1,5/2,5	86	73	0,87/1,74
3	x	1 1/2	89	x	44,5	2,0/4,0	x	1,5/2,5	86	76	0,88/1,76
3	x	2	89	x	57	2,0/4,0	x	1,5/3,0	86	80	0,89/1,78
3	x	2 1/2	89	x	76	2,0/4,0	x	2,0/3,5	86	83	0,90/1,80
3	x	3	89	x	89	2,0/4,0	x	2,0/4,0	86	86	1,70/3,40
4	x	1 1/2	108	x	44,5	2,5/5,0	x	1,5/2,5	105	89	1,60/3,20
4	x	2	108	x	57	2,5/5,0	x	1,5/3,0	105	90	1,61/3,22
4	x	2 1/2	108	x	76	2,5/5,0	x	2,0/3,5	105	92	1,65/3,30
4	x	3	108	x	89	2,5/5,0	x	2,0/4,0	105	96	1,67/3,34
4	x	4	108	x	108	2,5/5,0	x	2,5/5,0	105	105	3,00/5,00

RA nominal RA1	x	RA nominal RA2	OD RA1	x	OD RA2	s S1	x	s S2	a mm	b mm	Gewicht kg/Stück
10	x	5	267	x	133	3,0	x	2,5	216	189	9,88
10	x	6	267	x	159	3,0	x	2,5	216	194	10,40
10	x	7	267	x	194	3,0	x	3,0	216	198	11,80
10	x	8	267	x	219	3,0	x	3,0	216	203	13,80
10	x	10	267	x	267	3,0	x	3,0	216	216	14,90
12	x	6	324	x	159	4,0	x	2,5	254	219	18,30
12	x	7	324	x	194	4,0	x	3,0	254	222	19,0
12	x	8	324	x	219	4,0	x	3,0	254	229	19,90
12	x	10	324	x	267	4,0	x	3,0	254	241	20,30
12	x	12	324	x	324	4,0	x	4,0	254	254	21,30
14	x	7	368	x	194	4,0	x	3,0	279	242	23,50
14	x	8	368	x	219	4,0	x	3,0	279	248	24,10
14	x	10	368	x	267	4,0	x	3,0	279	257	24,80
14	x	12	368	x	324	4,0	x	4,0	279	270	25,40
14	x	14	368	x	368	4,0	x	4,0	279	279	25,90
16	x	8	419	x	219	4,0	x	3,0	305	276	30,10
16	x	10	419	x	267	4,0	x	3,0	305	283	30,50
16	x	12	419	x	324	4,0	x	4,0	305	295	31,80
16	x	14	419	x	368	4,0	x	4,0	305	305	32,50
16	x	16	419	x	419	4,0	x	4,0	305	305	33,40
18	x	10	457	x	267	4,5	x	3,0	343	310	41,50
18	x	12	457	x	324	4,5	x	4,0	343	321	43,20
18	x	14	457	x	368	4,5	x	4,0	343	330	43,70
18	x	16	457	x	419	4,5	x	4,0	343	330	46,20
18	x	18	457	x	457	4,5	x	4,5	343	343	48,60
20	x	12	508	x	324	5,0	x	4,0	381	347	57,70
20	x	14	508	x	368	5,0	x	4,0	381	356	58,40
20	x	16	508	x	419	5,0	x	4,0	381	356	59,20
20	x	18	508	x	457	5,0	x	4,5	381	368	60,70
20	x	20	508	x	508	5,0	x	5,0	381	381	63,20

İhtiyacınız olan bağlantı elemanı kataloğumuzda yoksa, teknik resme göre özel üretim yapıyoruz.
